Mikron prong snap systems are four-part textile fasteners manufactured from brass and supplied with a standard Nickel Free finish. Designed primarily for children's and women's apparel, the range is available in 7.5–21 mm sizes with capped, pearl, stone, painted, marble-effect and strainer head options.
What Is a Prong Snap System?

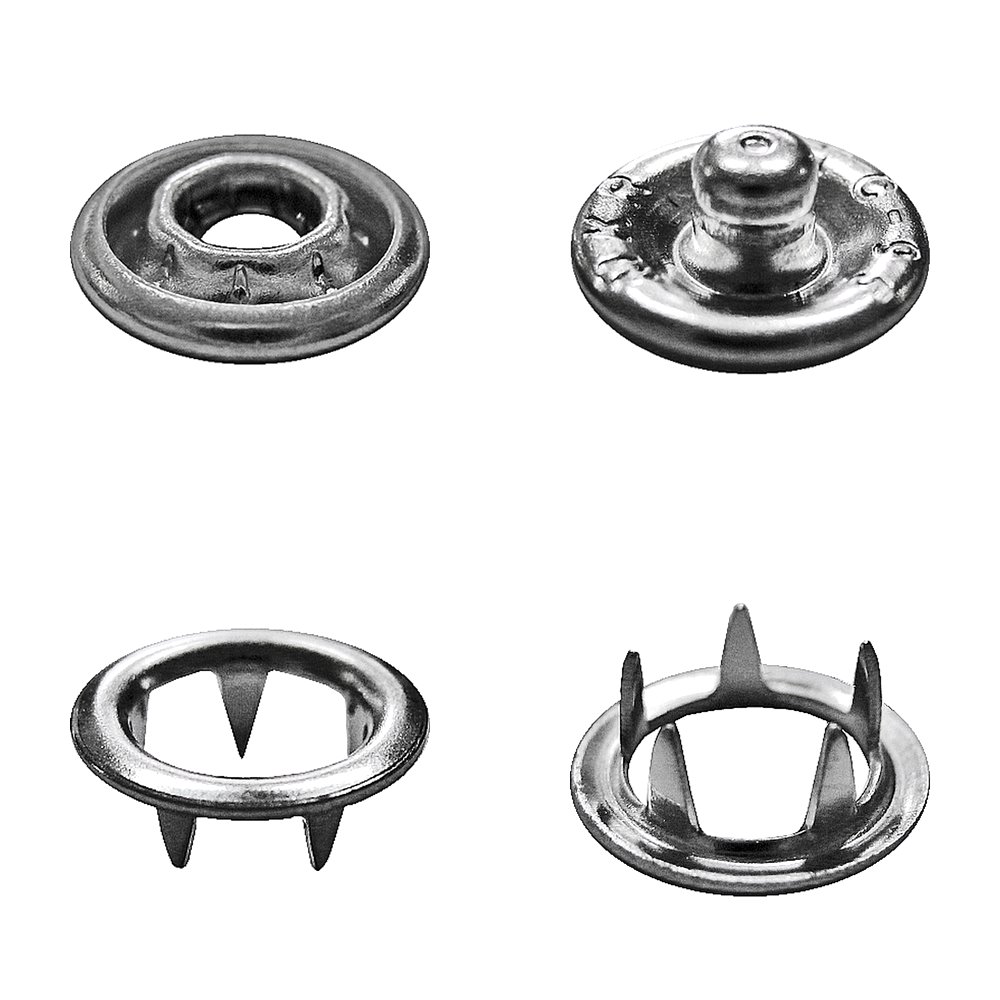

Mikron prong snaps are four-part textile fastening systems consisting of an upper pronged ring or cap, a socket, a stud and a lower pronged ring. The components are manufactured from brass and supplied with a standard Nickel Free finish.
The surrounding prongs pass through the fabric and connect with the socket and stud. When the correct product size and setting die are selected, this construction provides balanced and secure attachment to the fabric. Smaller prong snaps are also commonly known as baby snaps or pronged ring snaps.
Applications in Children's and Women's Apparel
Prong snaps are particularly suitable for thin, knitted and stretch fabrics. The product size and Length Under Flange (LUF) must be selected according to the construction, number of layers and total thickness of the fabric.
- Baby bodysuits, sleepsuits, pyjamas and children's clothing
- Women's blouses, shirts, dresses and knitwear
- Underwear and lingerie
- Knitted, jersey and stretch fabrics
- Sportswear and casual clothing
- Shirts and lightweight denim garments
- Bed linen, home textiles and selected technical textile applications
Key Product Features
- Brass material
- Standard Nickel Free finish
- Product group covered by OEKO-TEX® STANDARD 100
- Available in 7.5 mm, 9.5 mm, 10.5 mm, 15 mm and 21 mm sizes
- Four-part fastening system
- Options suitable for thin, knitted and stretch fabrics
- No pre-punching required with a suitable fabric and setting die combination
- Suitable for manual, impact and automatic attaching machines
Quality and Production Standards
Mikron prong snap systems are manufactured from brass and supplied as standard with a Nickel Free finish. This product group is covered by OEKO-TEX® STANDARD 100. Current certificates, test documents and information regarding the scope of certification are available upon request.
Decorative Head Options
The prong snap system can be manufactured with different decorative head options to match the design and visual identity of the garment collection:
- A1: Capped Prong
- S: Pearl Head Prong
- TAS: Stone Head Prong
- SP: Painted Prong
- M: Marble-Effect Head Prong
- SU: Strainer Prong
Decorative head availability should be evaluated according to the selected snap size and project requirements.
Prong Snap Technical Dimensions
| Product Code |
Upper Prong/Cap Outside Diameter |
Socket Outside Diameter |
Stud Outside Diameter |
Lower Prong Outside Diameter |
Length Under Flange (LUF) |
| TC-7,5 A | 6.8 mm | 7.4 mm | 7.4 mm | 6.8 mm | 2.3 mm |
| TC-7,5 A1 | 7.4 mm | 7.4 mm | 7.4 mm | 6.8 mm | 2.2 mm |
| TC-9,5 A | 9.3 mm | 9.5 mm | 9.5 mm | 9.3 mm | 2.8 mm |
| TC-9,5 A1 | 9.8 mm | 9.5 mm | 9.5 mm | 9.3 mm | 2.4 mm |
| TC-10,5 A | 10.4 mm | 11 mm | 11 mm | 10.4 mm | 3.1 mm |
| TC-10,5 A SU | 10.4 mm | 11 mm | 11 mm | 10.4 mm | 3.1 mm |
| TC-10,5 A1 | 11.3 mm | 11 mm | 11 mm | 10.4 mm | 2.6 mm |
| TC-15 A | 15 mm | 14.9 mm | 14.9 mm | 15 mm | 4.4 mm |
| TC-15 A1 | 16 mm | 14.9 mm | 14.9 mm | 15 mm | 4.2 mm |
| TC-15 A SU | 16 mm | 14.9 mm | 14.9 mm | 15 mm | 4.2 mm |
| TC-21 A | 21 mm | 20.2 mm | 20.2 mm | 21 mm | 5.6 mm |
| TC-21 A1 | 21.9 mm | 20.2 mm | 20.2 mm | 21 mm | 5.4 mm |
OD: Outside Diameter
LUF: Length Under Flange
All dimensions shown in the table are in millimetres.
Compatible Attaching Machines and Dies
Prong snaps can be attached using the following Mikron machines together with the original setting dies suitable for the selected product size:
- TEP-2 Hand Press
- DEP-2 Impact Hand Press
- C-125 Snap Attaching Machine
Before bulk production, the product size, number of fabric layers, total fabric thickness, setting die and machine settings must be tested on the actual production material.
How to Select the Correct Prong Snap
The correct product should not be selected solely according to its outside diameter. Fabric type, elasticity, number of layers, total thickness, frequency of use and the required visual result must be considered together.
Mikron provides technical support in determining the appropriate combination of prong snap, setting die and attaching machine for each application.
Frequently Asked Questions About Prong Snaps
How many components are used in a prong snap system?
The system consists of four components: an upper pronged ring or cap, a socket, a stud and a lower pronged ring.
Which fabrics are suitable for prong snaps?
Prong snaps are particularly suitable for thin, knitted, jersey and stretch fabrics. Common applications include baby and children's clothing, women's apparel, underwear, sportswear, shirts and lightweight denim garments.
Which sizes are available?
The product range includes 7.5 mm, 9.5 mm, 10.5 mm, 15 mm and 21 mm size options.
What material are Mikron prong snaps made from?
Mikron prong snap components are manufactured from brass and supplied with a standard Nickel Free finish.
Which machines can be used to attach the snaps?
Prong snaps can be attached using TEP-2, DEP-2 and C-125 machines together with a setting die suitable for the selected product size.
