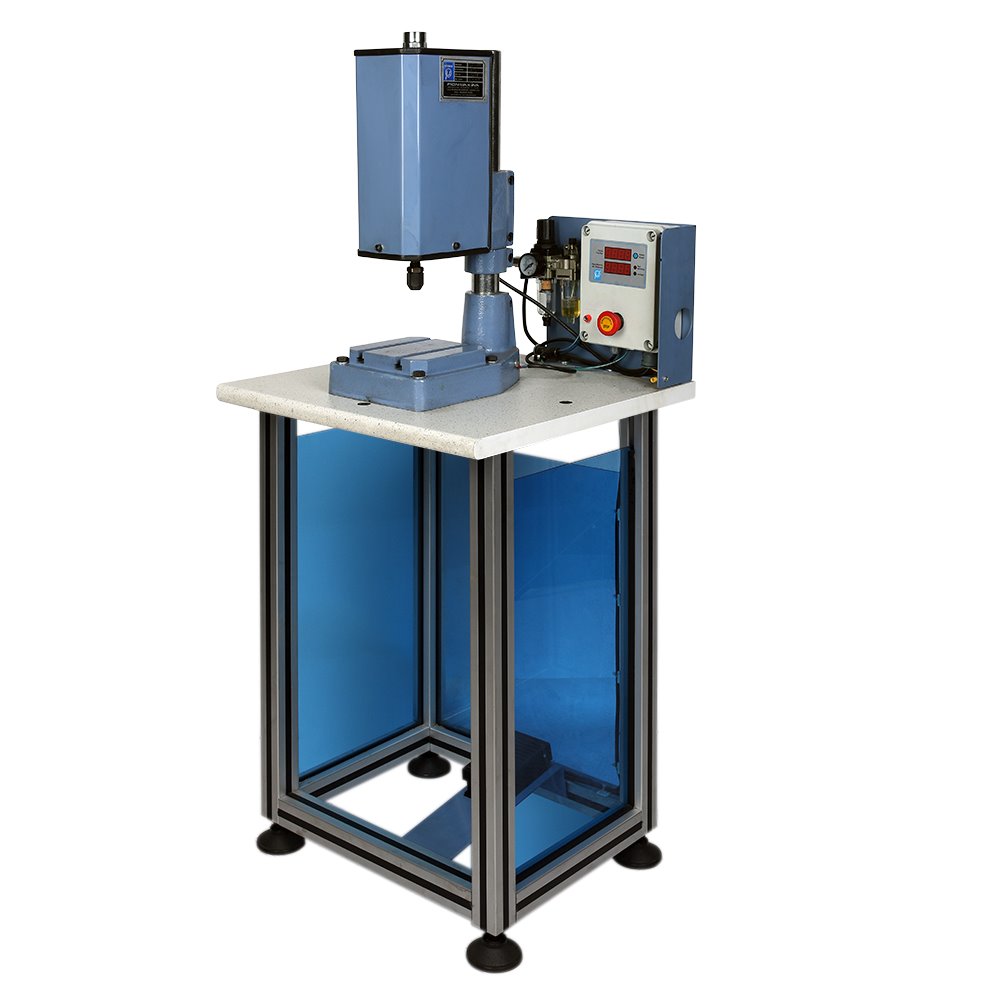

PDP - 2000 - Pneumatic Impact Press - Snap Button Attaching Machine

Products Code: PDP - 2000

One of the most prefered professional model of pneumatic press in Textile industry to attach snap fasteners , jeans buttons , rivets and eyelets. It’s also great selection to use on manufacturing of electrical and electronics components , metal forming processes,decoration field, upholstery , packing industry ,marking, forming , punching production lines.

Technical Drawing

Technical Features

  Size
A 545mm
B 545mm
C 160mm
D (max) 280mm
H 1350mm
Stroke Force 1800
Adaptore Hole 1/4"
Mounting Hole 9
Air Pressure 6
Table Detecting Sizes 165 X 165
T-Slot 8(12H,DIN650)
Weight 45kg
